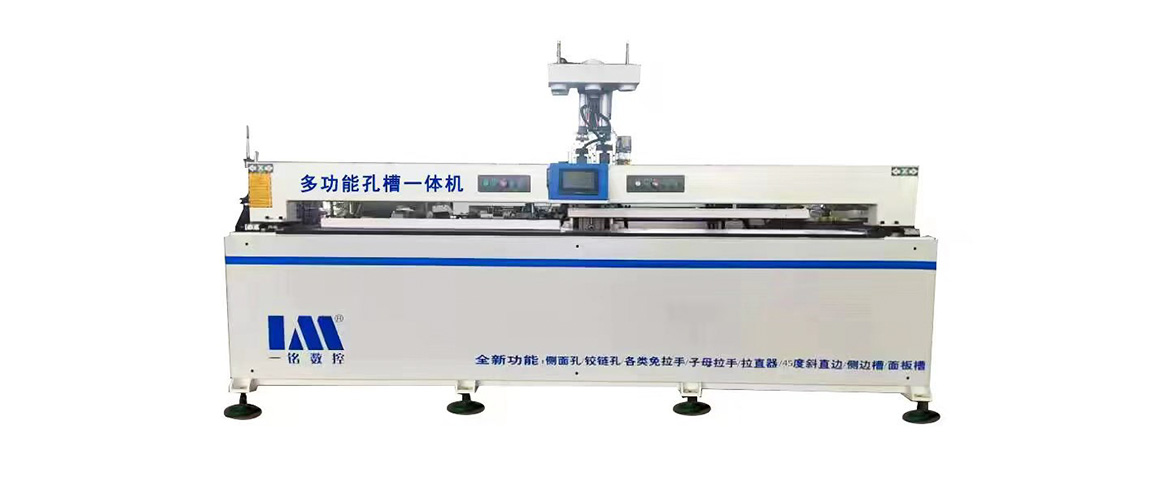

YM multifunctional hole slot all-in-one machine
產品設計亮點
◆YM–多功能孔槽一體機,各項配備均采用行業領先部件。
◆采用風冷電主軸，驅動系統采用伺服電機，效率更高。
◆一銘定制系統，模塊化參數，傻瓜式操作，操作簡單易上手。
◆ CNC digital control, with breakpoint memory function, ensures continuous operation in the event of accidental (knife breakage) or the next day.
◆ Overall structural welding, tempering and aging treatment, firm and not deformed. X-Z main casting structure, strong cutting force, higher accuracy.
適用行業
鋁蜂窩板、高光門板、生態門、室內門、護墻板等家居行業門板系列。
Equipment technical parameters
NO. | performance index | performance index | ? | parameter |
1 | stroke | X stroke | ? | 3000mm |
Y stroke | ? | 300mm | ||
Z stroke | ? | 200mm | ||
2 | Dimensions | ? | ? | 3800*1600*2100mm |
3 | Precision | Precision | ? | ±0.05mm |
Repeatability | ? | ±0.05mm | ||
4 | structure | Countertop structure | ? | PVC structure |
structure | ? | Z 絲杠、 X/Y 齒條 | ||
5 | speed | Maximum empty travel speed | ? | 60000mm/min |
Working speed | ? | 15000mm/min | ||
6 | Spindle power | ? | 3.5KW | |
7 | Operating mode | ? | ? | servo |
8 | Operating Voltage | ? | ? | AC380V/50Hz |
9 | Run command | ? | ? | G-code |
10 | operating system | ? | ? | Yiming Customized System |
11 | net weight | ? | ? | 1500Kg |
service
- Equipment installation and commissioning
*After the equipment arrives at the user, the technical engineer of Yiming CNC arrives at the user site for installation and commissioning training on the same day
*Please prepare the work before the engineer arrives at the site. For example: unloading equipment, equipment site, power supply, computer, plug-in voltage regulator, leakage protector, please actively cooperate with users. After the equipment debugging is completed, please ask the user for acceptance.
?
- Training
*Free after-sales training for customers.
*The trainees must have a certain level of relevant education and knowledge, and the supplier will program, operate, process, and perform daily maintenance on the customer
Face to face training requires trainees to be fixed and study diligently.
*Supplier technical engineers visit customers from time to time, and communicate with customers about machine operation and product processing. Users can consult Yiming any questions by phone or email at any time.
?
- After-sales service
* During the warranty period, the machine will be repaired free of charge, and the equipment repairs within the warranty period will be clearly marked.
*General maintenance work is carried out on-site, and the corresponding repair time does not exceed 24 hours.
