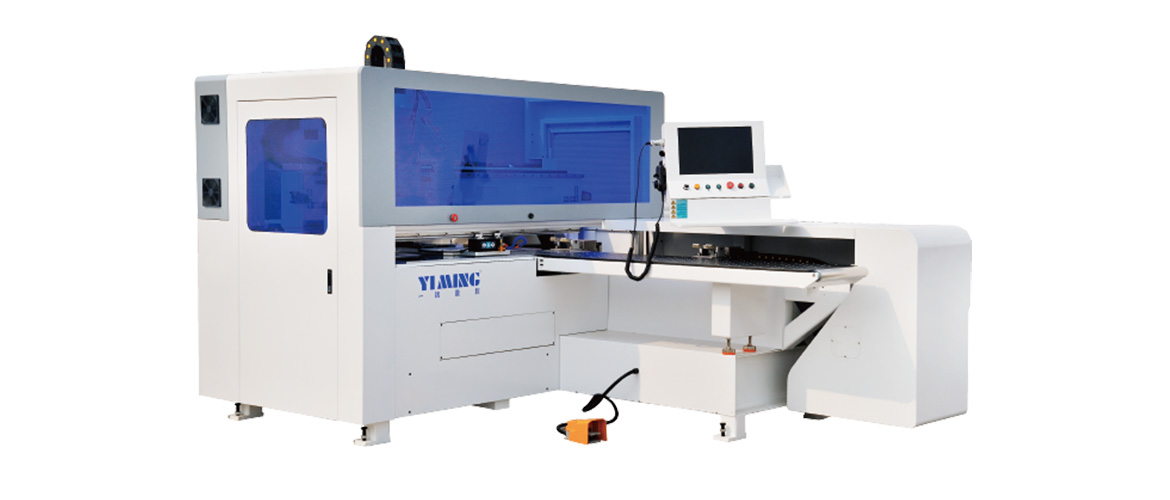

PTP-CNC Drilling and Machining Center
Functional characteristics
The CNC six-sided drill is an efficient equipment dedicated to solving the void process in the production of panel furniture.
?
No need to reprint, after importing the processing data at one time, scan the code to complete the processing.
?
The upper and lower spindles can simultaneously process front and back symmetrical slots.
?
Yaskawa bus absolute value servo. Ensure positioning speed and response time.
?
Yintai rail. Ensure accuracy and give full play to servo performance.
?
Data docking, ban/xml/dxf/mpr, etc.
?
Taiwan Puten row drill. Sidetracking roller, vertical pressing plate, lower support plate, three ways to ensure the fixing of the plate.
Simple operation and detailed display
Product video introduction
PTP-CNC Drilling and Machining Center
This machine is suitable for the processing of diversified and complex products, with a wide range of functions: router milling, row drilling, cutting, side milling, and sawing.
可實現雙工位加工，機器進行一工位操作時，二工位可同時進行上下料操作，無怠工時間。
The whole board is processed without sawing, and it can be cut on the line, loading and unloading is convenient and fast, and the auxiliary time is shortened.
Equipment technical parameters
Serial number | performance | index | parameter |
1 | stroke | X stroke | 1300mm |
Y stroke | 2500mm | ||
Z stroke | 200mm | ||
2 | Platform size | ? | 1420*3015 |
3 | Precision | Precision | 0.05mm |
Repeatability | 0.05mm | ||
4 | structure | Countertop structure | Vacuum adsorption |
X、Y、Z structure | X、Y rack,Z Lead screw | ||
5 | speed | Maximum empty travel speed | 100000mm/min |
Working speed | 30000mm/min | ||
6 | Spindle | Spindle power | HQD4.5KW+HQD6.0K W |
Spindle speed | 0-18000r/min | ||
7 | Operating mode | ? | Raiser Servo |
8 | Operating Voltage | ? | AC380V/50Hz |
9 | Run command | ? | G Code |
10 | operating system | ? | Weihong NK260 system |
11 | net weight | ? | 2800Kg |
12 | Gross weight | ? | 3200Kg |
?
Cut sample
